Sliding Patio Door Bottom Channel Weatherstrip – Durable Vinyl Sweep Seal

Description

Part Number: 505

Door Bottom Channel Weather Strip For Sliding Patio Door

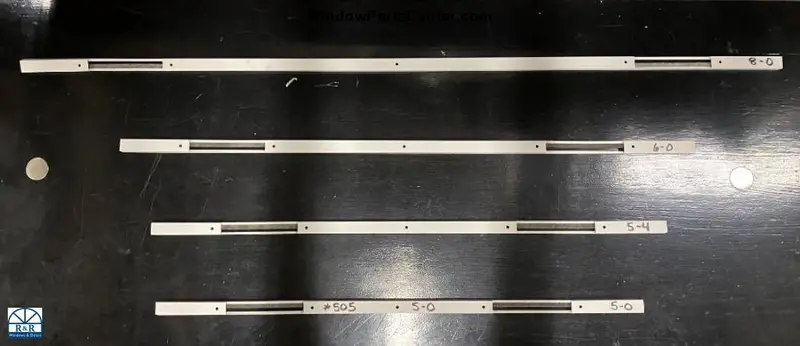

Size Length:

• 5-0 Door = 29 1/4 Inch Channel
• 5-4 Door = 31 1/4 Inch Channel
• 6-0 Door = 35 1/4 Inch Channel
• 8-0 Door = 47 1/4 Inch Channel

Color: White

Material: Vinyl Plastic

Vinyl Dimensions: 3/4″ Wide and flanges out to 13/16″ Wide  X 1/2″ Deep  x Length (see size options above)

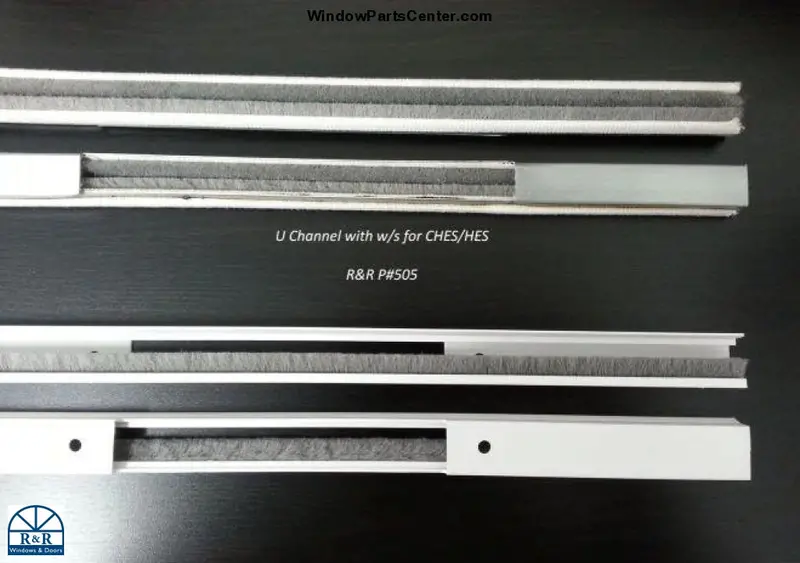

• Description: U Channel Weather-strip for CHES/HES Hurd Sliding Patio Door. The metal channel is for older Hurd “Classic” doors and the plastic one is for “Energy Saver” doors. If you have the old metal we recommend you purchase the longest length(8-0) and retro fit like our how to video shows below.
  Metal Style NLA will have to retro fit by using the plastic part – the fuzzy weather strip will be installed toward the exterior on the door panel. Please watch how to video below.
  The Metal Dimensions (NLA): 5/8″ wide at metal top and ¾” wide at fuzzy weather strip side x ½” deep x length depending on door size
  The Plastic Vinyl Dimensions: 3/4″ Wide X 1/2″ Deep x length (see size options above)
  ***505 part can only be retuned if its in new, unused uncut condition***

Associated Pars Sold Separately:

Part Number 526 Parting Stop – wood part that 511 snaps into

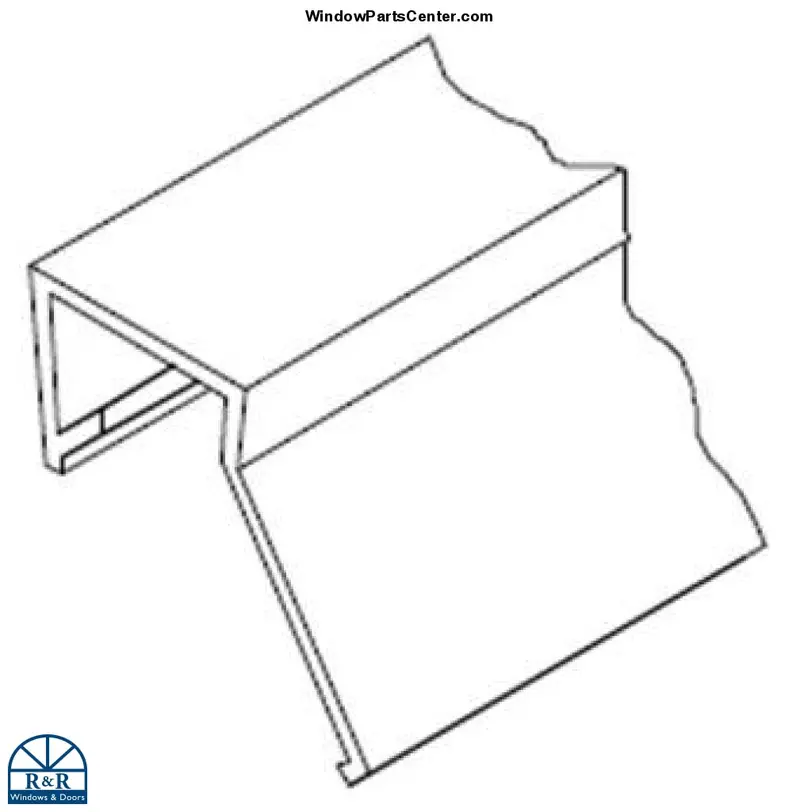

Part Number 513 Vinyl Side Stop weather strip Used along with 511

Part Number 527 Wood Side Stop that 513 snaps into

Part Number 511 Weather Strip

Part Number 520 Rollers

Known to have been used on: Hurd, Sierra pacific, Park Vue, Weather shield and many other patio door brands.

***505 part can only be retuned if its in new, unused uncut condition***

known past numbers:

SSPD467
